ENCLOSURE - EXAMPLES ON ANDOR

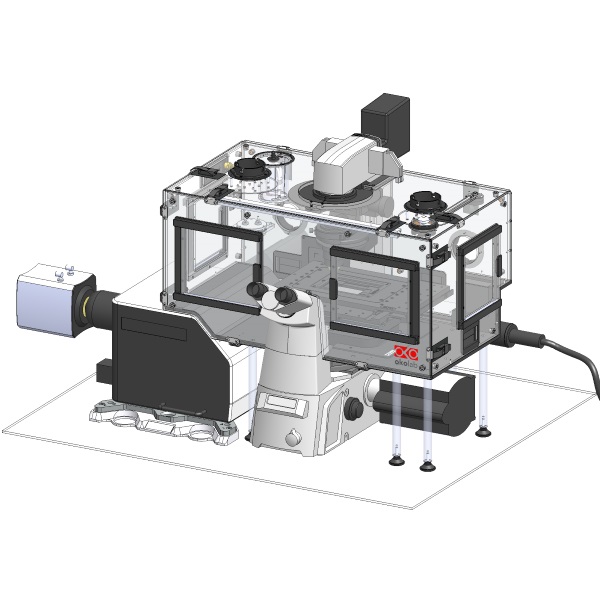

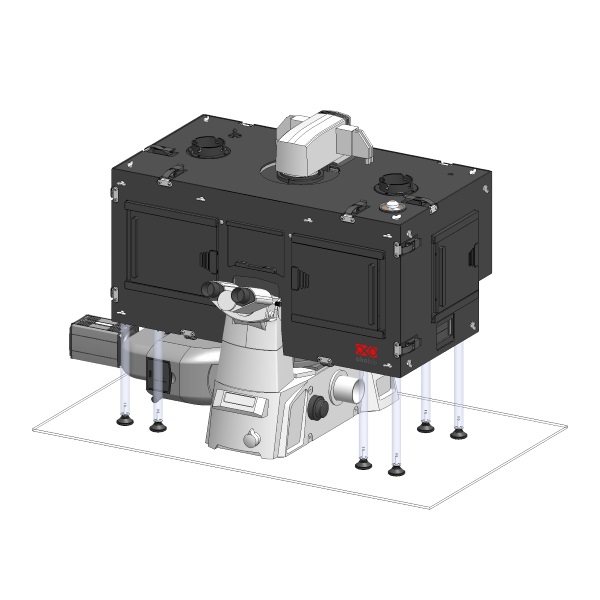

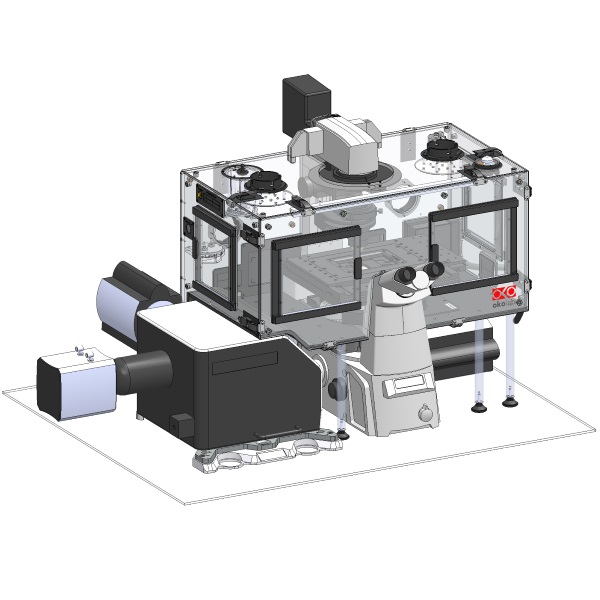

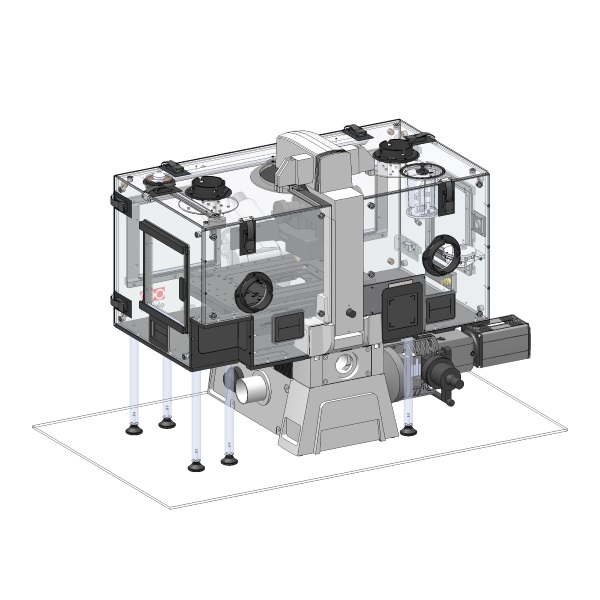

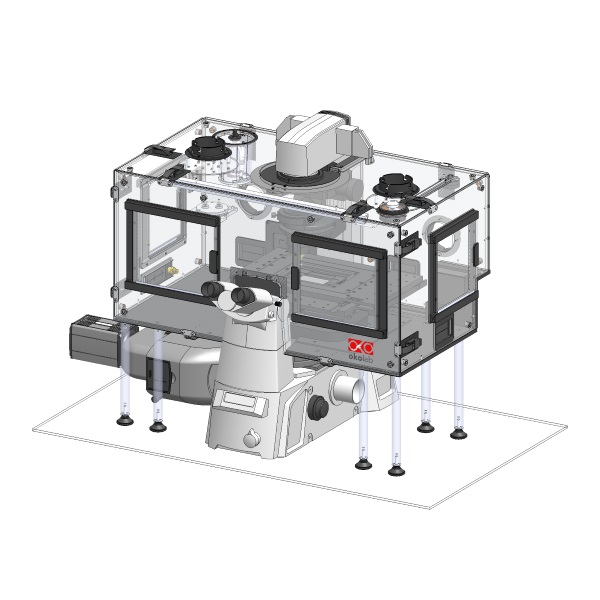

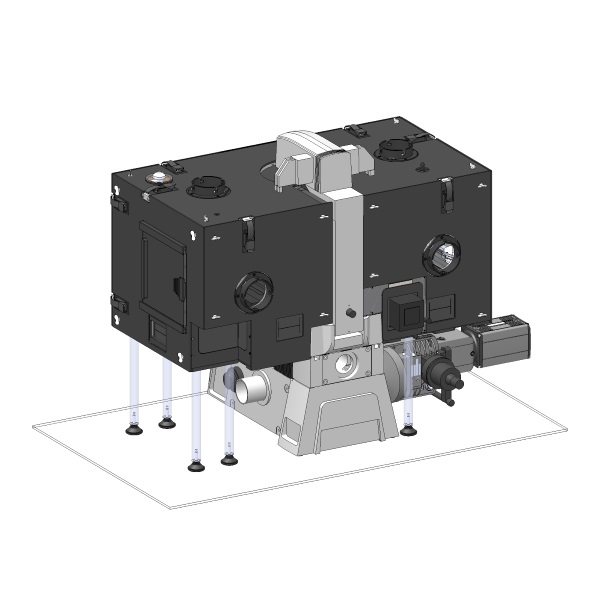

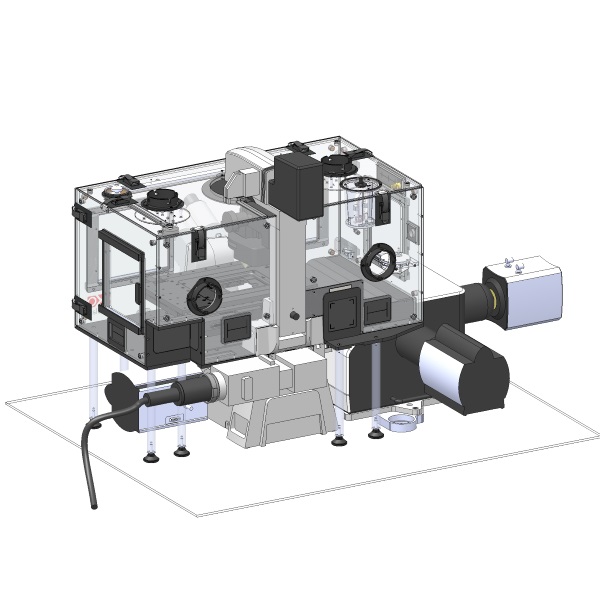

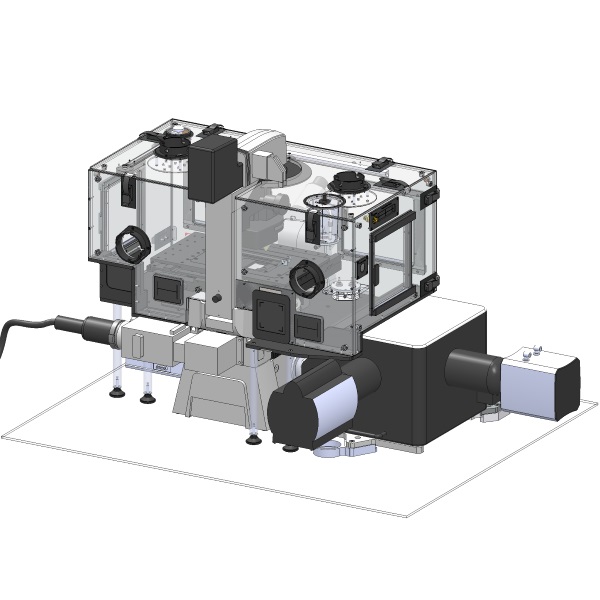

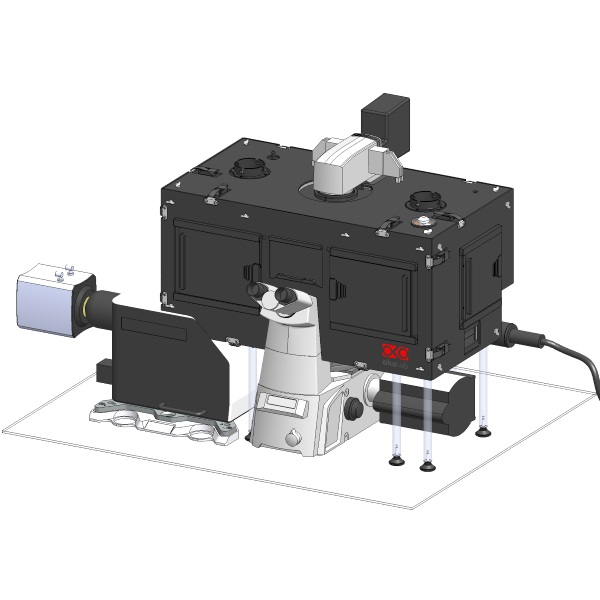

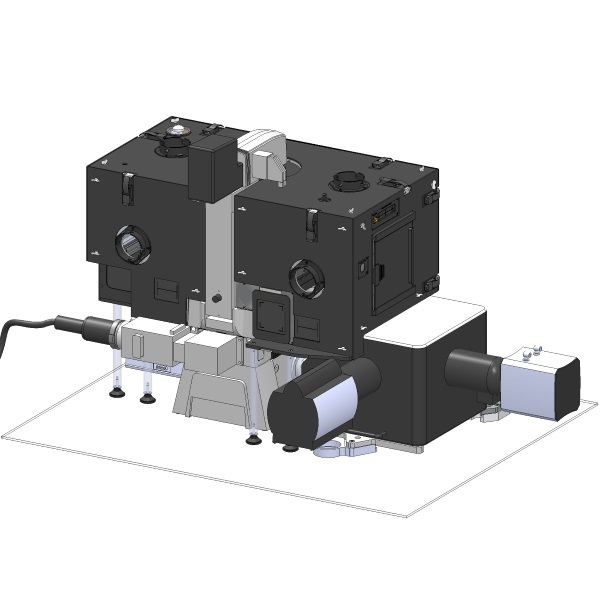

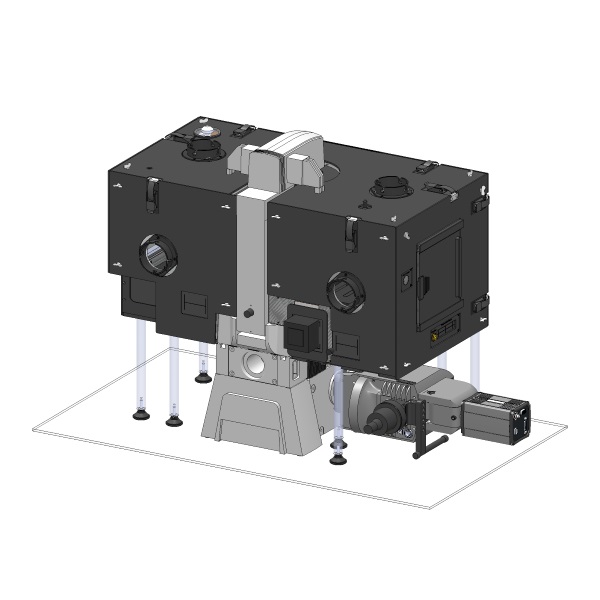

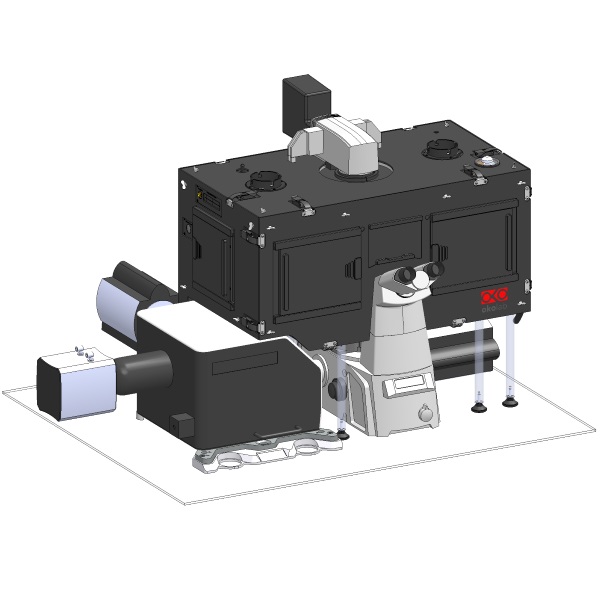

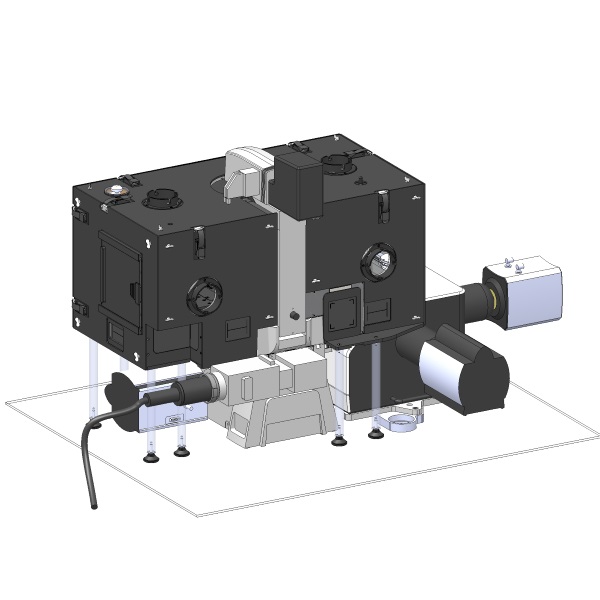

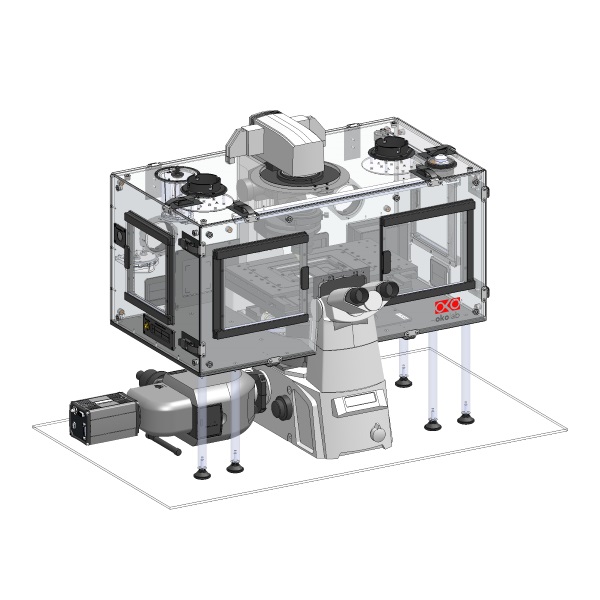

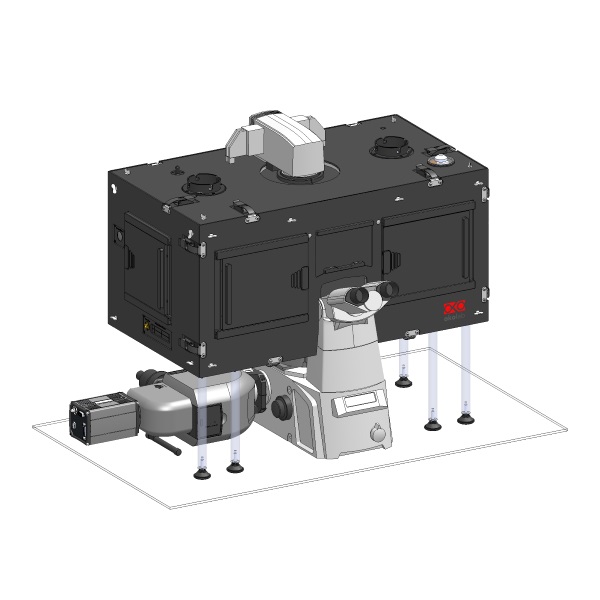

In this page we report drawings of the enclosure for two configurations, based on the ANDOR platform.
| Revolution WD | Revolution DSD2 | |
|---|---|---|
| Body | Nikon TI | Nikon TI |
| Eyepiece | Standard | Standard |
| XY-Stage | Motorized Stage HLD117NN from Prior | Motorized Stage HLD117NN from Prior |
| Back Port | Tirf Module | none |
| Left Port | Confocal Unit CSU-W1 from Yokogawa with iXon EMCCD Camera and Neo cMOS camera | Confocal Unit DSD2 with sCMOS camera Zyla |
| Right Port | iXon EMCCD | none |
